The NINZ reinforced metal fire doors (60', 90' and 120') PROGET are multi-purpose, suitable for very large openings and for all types of masonry (e.g. "tunnels").
The fire-resistant opening doors are made of specially galvanized sheet metal and filled with insulating material, with a sheet thickness of 60mm, they provide solutions characterized by robustness and perfect operation, and covering all fire safety requirements.
Characteristics
- Possibility of installation in all types of masonry, such as brick, plasterboard, "tunnel"

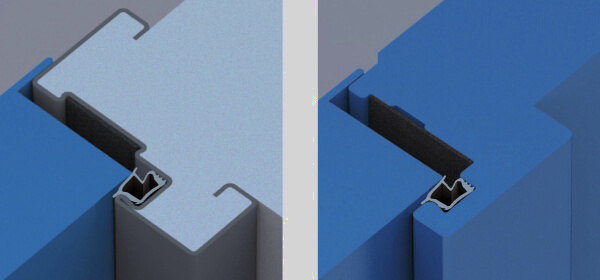

- Split reinforced case 70x100mm with heat-expandable tape and separate housing

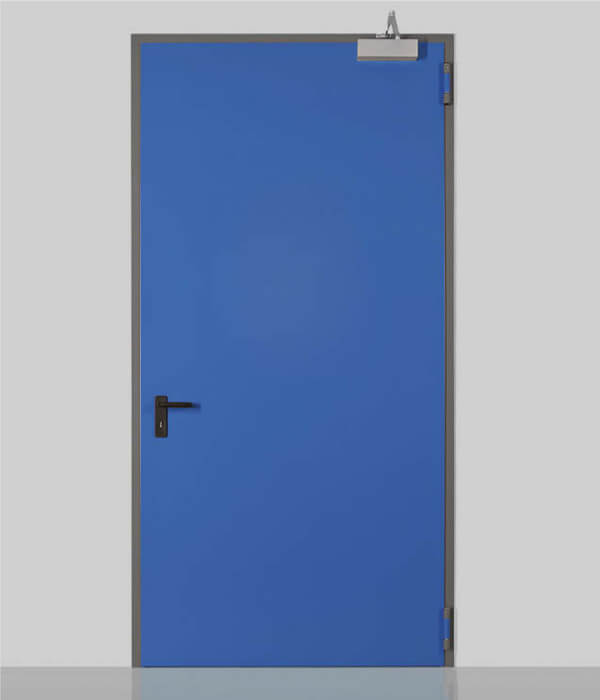

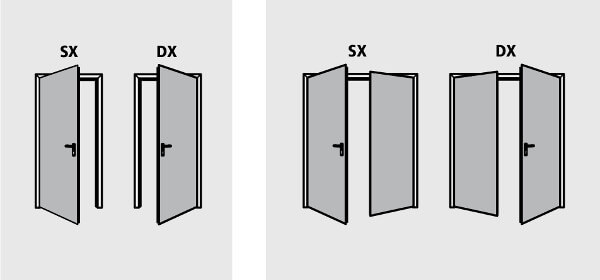

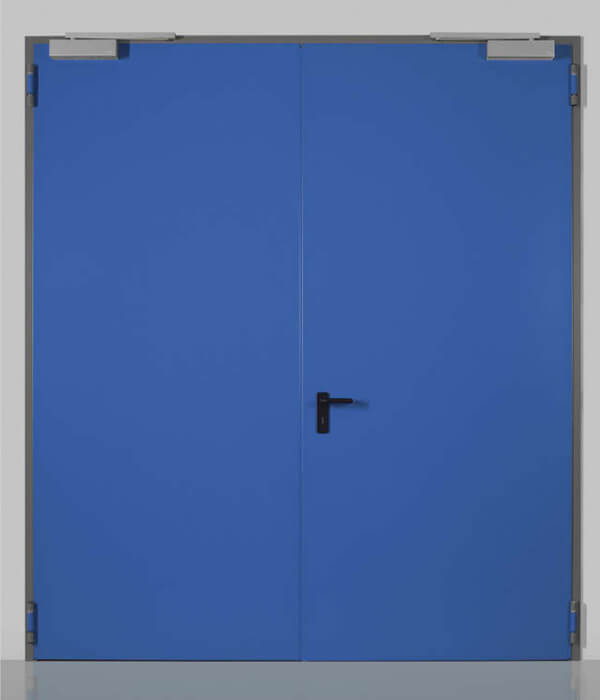

- Single-leaf or double-leaf
- Heavy duty hinges, one adjustable and one reset
- Possibility of installing fire-resistant glass, in a round or rectangular cross-section
- Possibility of installing glass, round or rectangular
- Fire resistant plastic handle "U" type with metal core
- Additional equipment (panic bars, controlled access systems, etc.)
Additional Features
In standard dimensions:
- single sheet from 800 to 1350mm (per 100mm) wide and 2050 or 2150mm high
- double-leaf from 1150 to 2000mm (per 100mm) wide and 2050 or 2150mm high
- Possibility of special dimensions on request, up to 2540mm width and 2670mm height.
The fireproof doors are electrostatically painted in all RAL with a clear finish and anti-scratch properties (standard RAL 7035, grey), and possibility for digital printing. It is also available as a simple metal one with the same characteristics except for fire resistance, with a thickness of 50mm, the possibility of installing blinds and with CE certification for outdoor use.
